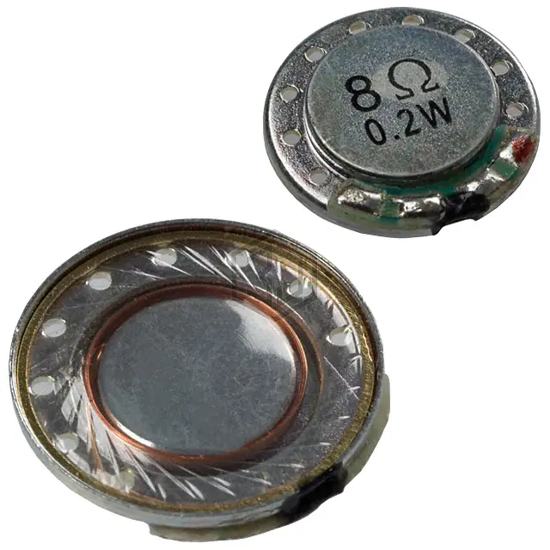

SPEAKER 8OHM 200MW TOP PORT 86DB
CDMG13008L-02 is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 200MW TOP PORT 86DB. Key specifications: size / dimension 0.512" Dia (13.00mm), termination Solder Pads, power - max 400 mW, frequency range 1.05 kHz ~ 20 kHz.
In Stock: 1,541
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 1.05 kHz ~ 20 kHz |
| Frequency - Self Resonant | 1050Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 75.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 200 mW |
| Power - Max | 400 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.512" Dia (13.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for CDMG13008L-02 and get a quote within 24 hours.
