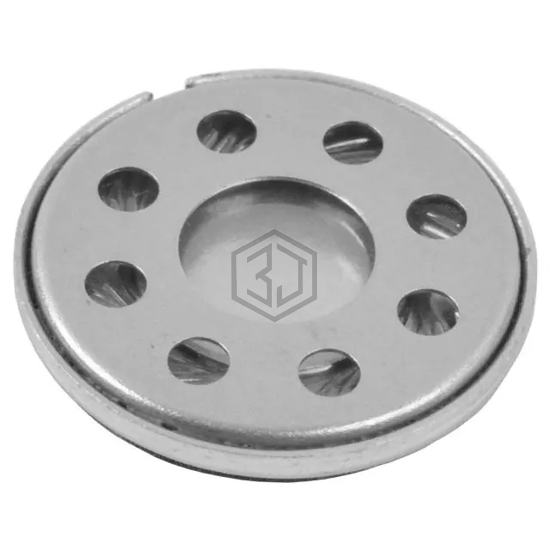

SPEAKER 8OHM 400MW TOP PORT 93DB
CDM-16008 is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 400MW TOP PORT 93DB. Key specifications: size / dimension 0.630" Dia (16.00mm), termination Solder Pads, power - max 600 mW, frequency range 640 Hz ~ 20 kHz.
In Stock: 2,600
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 640 Hz ~ 20 kHz |
| Frequency - Self Resonant | 800Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 93.00 |
| Efficiency - Testing | 400mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 400 mW |
| Power - Max | 600 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.126" (3.20mm) |
Submit your RFQ for CDM-16008 and get a quote within 24 hours.
