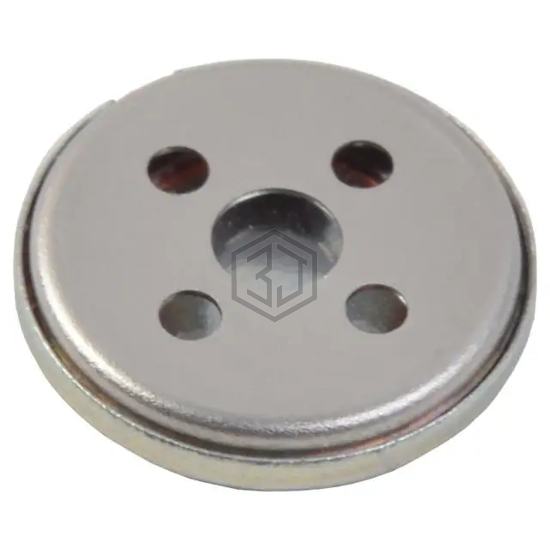

SPEAKER 8OHM 300MW TOP PORT 86DB
CDM-10008 is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 300MW TOP PORT 86DB. Key specifications: size / dimension 0.394" Dia (10.00mm), termination Solder Pads, power - max 500 mW, frequency range 960 Hz ~ 20 kHz.
In Stock: 5,227
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 960 Hz ~ 20 kHz |
| Frequency - Self Resonant | 1200Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 86.00 |
| Efficiency - Testing | 300mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 300 mW |
| Power - Max | 500 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.114" (2.90mm) |
Submit your RFQ for CDM-10008 and get a quote within 24 hours.
