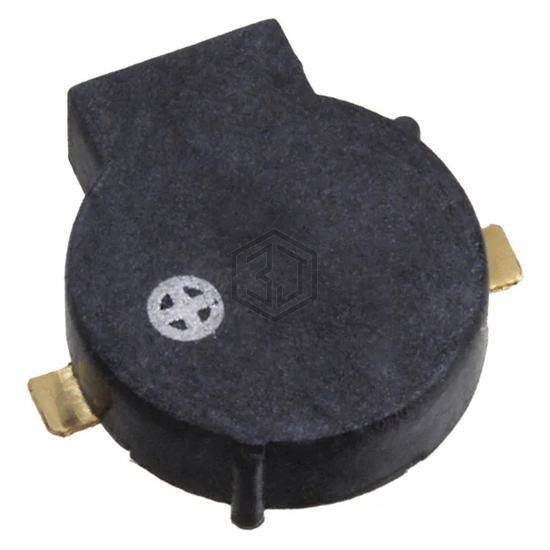

BUZZER MAGNETIC 3.6V 9MM SMD
CBT-09427-SMT-TR is a Alarms, Buzzers, and Sirens manufactured by CUI Devices. BUZZER MAGNETIC 3.6V 9MM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 3.6 V, current - supply 110mA.
In Stock: 62,838
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 3.6 V |
| Voltage Range | 2.5 ~ 4.5V |
| Frequency | 2.73kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 83dB @ 3.6V, 10cm |
| Current - Supply | 110mA |
| Port Location | Side |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.354" Dia (9.00mm) |
| Height - Seated (Max) | 0.106" (2.70mm) |
Submit your RFQ for CBT-09427-SMT-TR and get a quote within 24 hours.
