Tusonix a Subsidiary of CTS Electronic Components

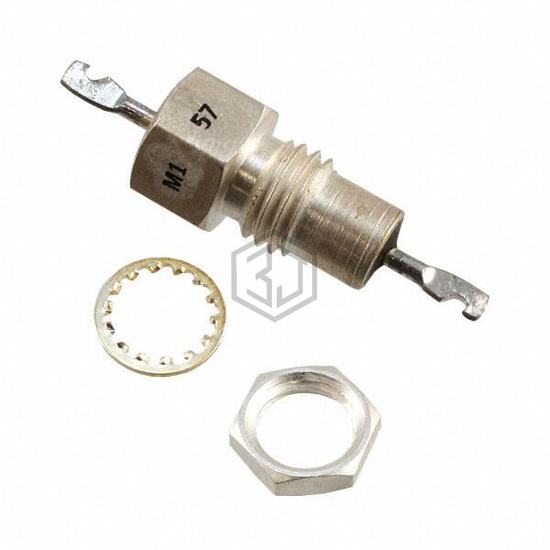

FILTER LC(PI) 2000PF CHASSIS
M15733/61-0003 is a EMI/RFI Filters (LC, RC Networks) manufactured by Tusonix a Subsidiary of CTS Electronic Components. FILTER LC(PI) 2000PF CHASSIS. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 125°C, voltage - rated 500V, package / case Axial, Bushing - 2 Notched Leads.
In Stock: 6,103
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Low Pass |
| Filter Order | 3rd |
| Technology | LC (Pi) |
| Number of Channels | 1 |
| Center / Cutoff Frequency | - |
| Attenuation Value | 55dB @ 100MHz |
| Resistance - Channel (Ohms) | - |
| Current | 25 A |
| Values | C = 2000pF |
| ESD Protection | No |
| Operating Temperature | -55°C ~ 125°C |
| Applications | - |
| Voltage - Rated | 500V |
| Mounting Type | Chassis Mount |
| Package / Case | Axial, Bushing - 2 Notched Leads |
| Size / Dimension | 0.375" Dia x 0.687" L (9.53mm x 17.45mm) |
| Height | - |
Submit your RFQ for M15733/61-0003 and get a quote within 24 hours.
