Tusonix a Subsidiary of CTS Electronic Components

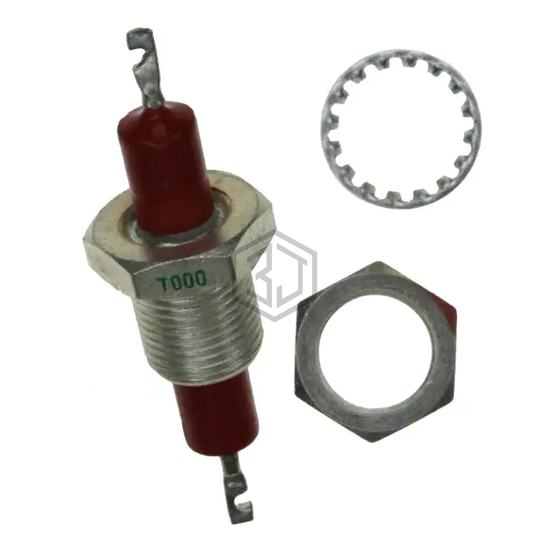

FILTER LC(PI) 1500PF CHASSIS
4208-000LF is a EMI/RFI Filters (LC, RC Networks) manufactured by Tusonix a Subsidiary of CTS Electronic Components. FILTER LC(PI) 1500PF CHASSIS. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 125°C, voltage - rated 2000V (2kV), package / case Axial, Bushing - 2 Notched Leads.
In Stock: 1,033
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Low Pass |
| Filter Order | 3rd |
| Technology | LC (Pi) |
| Number of Channels | 1 |
| Center / Cutoff Frequency | - |
| Attenuation Value | 50dB @ 100MHz ~ 10GHz |
| Resistance - Channel (Ohms) | - |
| Current | 25 A |
| Values | C = 1500pF |
| ESD Protection | No |
| Operating Temperature | -55°C ~ 125°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | 2000V (2kV) |
| Mounting Type | Chassis Mount |
| Package / Case | Axial, Bushing - 2 Notched Leads |
| Size / Dimension | 0.500" Dia x 0.500" L (12.70mm x 12.70mm) |
| Height | - |
Submit your RFQ for 4208-000LF and get a quote within 24 hours.
