SWITCH SLIDE DIP SPST 100MA 20V

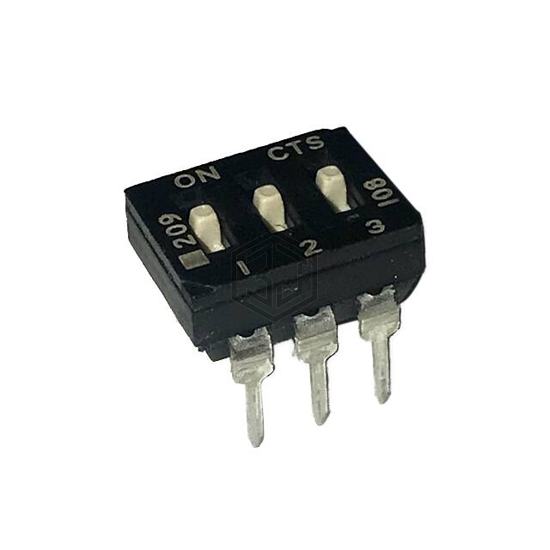

209-3MSD is a DIP Switches manufactured by CTS Electrocomponents. SWITCH SLIDE DIP SPST 100MA 20V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating 20VDC, contact material Beryllium Copper.
In Stock: 3,377
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit | SPST |
| Number of Positions | 3 |
| Current Rating (Amps) | 100mA |
| Voltage Rating | 20VDC |
| Actuator Type | Slide (Standard) |
| Actuator Level | Raised |
| Contact Material | Beryllium Copper |
| Contact Finish | Gold |
| Height Above Board | 0.190" (4.83mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | No |
| Features | Epoxy Sealed Terminals |
| Operating Temperature | -40°C ~ 85°C |
Submit your RFQ for 209-3MSD and get a quote within 24 hours.
