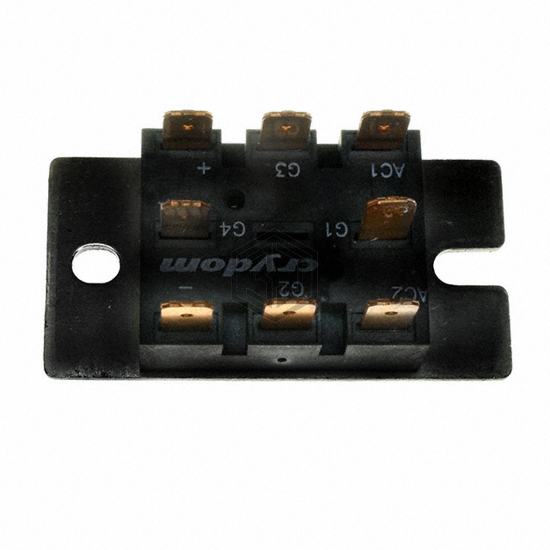

M252532
MODULE POWER 25A 600V SCR BRIDGE
M252532 is a Thyristors - SCRs - Modules manufactured by Sensata-Crydom. MODULE POWER 25A 600V SCR BRIDGE. Key specifications: mounting type Chassis Mount, package / case Module.
In Stock: 6
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Structure | Bridge, Single Phase - All SCRs |
| Number of SCRs, Diodes | 4 SCRs |
| Voltage - Off State | 600 V |
| Current - On State (It (AV)) (Max) | - |
| Current - On State (It (RMS)) (Max) | - |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 300A @ 60Hz |
| Current - Hold (Ih) (Max) | 75 mA |
| Operating Temperature | - |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
Frequently Asked Questions
M252532 is a Thyristors - SCRs - Modules manufactured by Sensata-Crydom. MODULE POWER 25A 600V SCR BRIDGE
The mounting type of M252532 is Chassis Mount.
The package type of M252532 is Module.
Yes, M252532 is listed as Not For New Designs. Consider requesting a quote for alternative parts.
