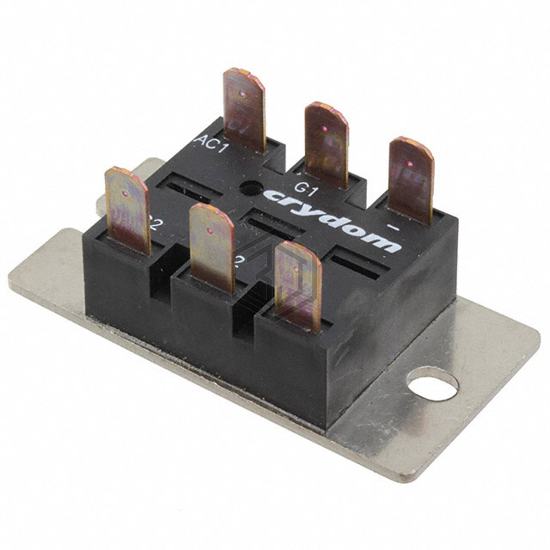

M252513F
MODULE POWER 25A 320VAC SCR CC
M252513F is a Thyristors - SCRs - Modules manufactured by Sensata-Crydom. MODULE POWER 25A 320VAC SCR CC. Key specifications: mounting type Chassis Mount, package / case Module.
In Stock: 8
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Structure | Bridge, Single Phase - SCRs/Diodes (Layout 1) |
| Number of SCRs, Diodes | 2 SCRs, 2 Diodes |
| Voltage - Off State | 800 V |
| Current - On State (It (AV)) (Max) | - |
| Current - On State (It (RMS)) (Max) | - |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 300A @ 60Hz |
| Current - Hold (Ih) (Max) | 75 mA |
| Operating Temperature | - |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
Frequently Asked Questions
M252513F is a Thyristors - SCRs - Modules manufactured by Sensata-Crydom. MODULE POWER 25A 320VAC SCR CC
The mounting type of M252513F is Chassis Mount.
The package type of M252513F is Module.
Yes, M252513F is listed as Not For New Designs. Consider requesting a quote for alternative parts.
