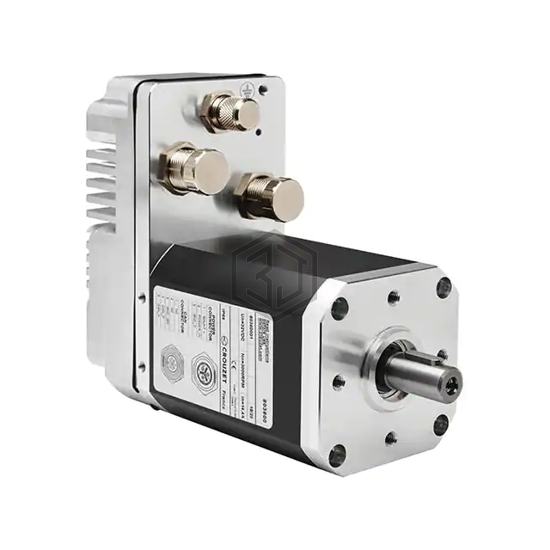

SERVOMOTOR 2960 RPM 32V 400W
80360001 is a Motors - AC, DC manufactured by Crouzet. SERVOMOTOR 2960 RPM 32V 400W. Key specifications: operating temperature -30°C ~ 70°C, voltage - rated 32VDC, size / dimension Square - 2.953" x 2.953" (75.00mm x 75.00mm), termination style Connector.
In Stock: 2,484
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DC Motor |
| Function | Servomotor |
| Motor Type | Brushless (BLDC) |
| Voltage - Rated | 32VDC |
| RPM | 2960 RPM |
| Torque - Rated (oz-in / mNm) | 184.1 / 1300 |
| Power - Rated | 400W |
| Encoder Type | Incremental |
| Size / Dimension | Square - 2.953" x 2.953" (75.00mm x 75.00mm) |
| Diameter - Shaft | 0.551" (14.00mm) |
| Length - Shaft and Bearing | 1.181" (30.00mm) |
| Mounting Hole Spacing | 2.205" (56.00mm) |
| Termination Style | Connector |
| Features | Integrated Controller, Key |
| Gear Reduction Ratio | - |
| Torque - Max Momentary (oz-in / mNm) | 566.5 / 4000 |
| Operating Temperature | -30°C ~ 70°C |
