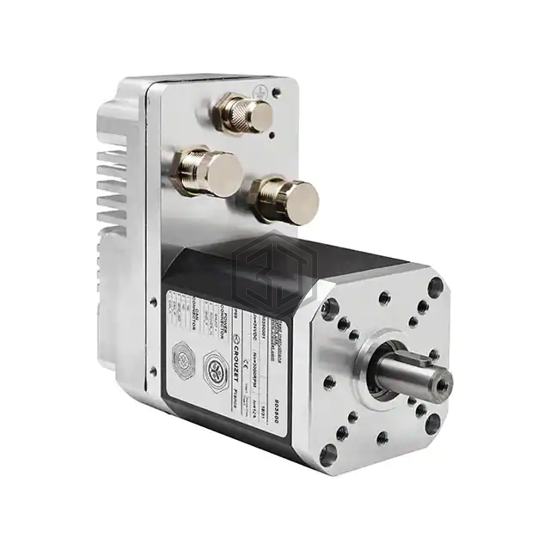

SERVOMOTOR 3000 RPM 24V 310W
80350001 is a Motors - AC, DC manufactured by Crouzet. SERVOMOTOR 3000 RPM 24V 310W. Key specifications: operating temperature -30°C ~ 70°C, voltage - rated 24VDC, size / dimension Square - 2.953" x 2.953" (75.00mm x 75.00mm), termination style Connector.
In Stock: 2,765
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DC Motor |
| Function | Servomotor |
| Motor Type | Brushless (BLDC) |
| Voltage - Rated | 24VDC |
| RPM | 3000 RPM |
| Torque - Rated (oz-in / mNm) | 141.64 / 1000 |
| Power - Rated | 314W |
| Encoder Type | Incremental |
| Size / Dimension | Square - 2.953" x 2.953" (75.00mm x 75.00mm) |
| Diameter - Shaft | 0.551" (14.00mm) |
| Length - Shaft and Bearing | 1.181" (30.00mm) |
| Mounting Hole Spacing | 2.205" (56.00mm) |
| Termination Style | Connector |
| Features | Integrated Controller, Key |
| Gear Reduction Ratio | - |
| Torque - Max Momentary (oz-in / mNm) | 354 / 2500 |
| Operating Temperature | -30°C ~ 70°C |
Submit your RFQ for 80350001 and get a quote within 24 hours.
