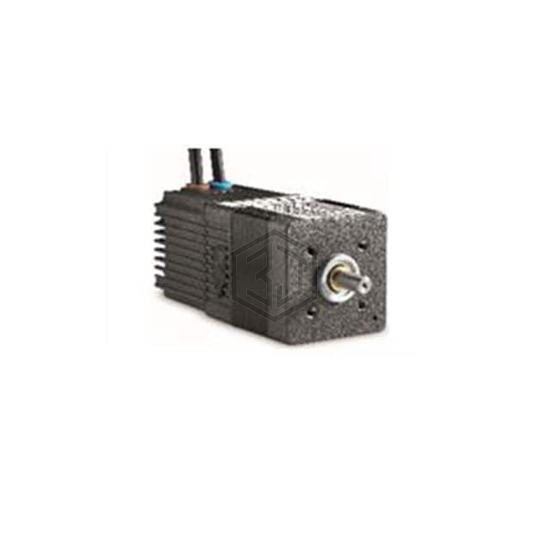

SERVOMOTOR 3000 RPM 12-48V SMI21
80280001 is a Motors - AC, DC manufactured by Crouzet. SERVOMOTOR 3000 RPM 12-48V SMI21. Key specifications: operating temperature -30°C ~ 70°C, voltage - rated 12 ~ 48VDC, size / dimension Square - 2.244" x 2.244" (57.00mm x 57.00mm), termination style Cable with Connector.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DC Motor |
| Function | Servomotor |
| Motor Type | Brushless (BLDC) |
| Voltage - Rated | 12 ~ 48VDC |
| RPM | 3000 RPM |
| Torque - Rated (oz-in / mNm) | 97.02 / 685 |
| Power - Rated | 170W |
| Encoder Type | Incremental |
| Size / Dimension | Square - 2.244" x 2.244" (57.00mm x 57.00mm) |
| Diameter - Shaft | 0.315" (8.00mm) |
| Length - Shaft and Bearing | 0.984" (25.00mm) |
| Mounting Hole Spacing | - |
| Termination Style | Cable with Connector |
| Features | Integrated Controller |
| Gear Reduction Ratio | - |
| Torque - Max Momentary (oz-in / mNm) | 141.6 / 1000 |
| Operating Temperature | -30°C ~ 70°C |
