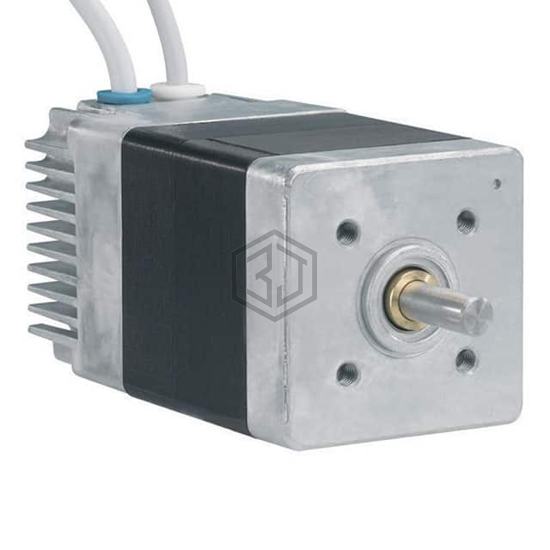

STANDARD MOTOR 2000 RPM 24V
80140510 is a Motors - AC, DC manufactured by Crouzet. STANDARD MOTOR 2000 RPM 24V. Key specifications: operating temperature -40°C ~ 70°C, voltage - rated 24VDC, size / dimension Square - 2.244" x 2.244" (57.00mm x 57.00mm), termination style Wire Leads.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DC Motor |
| Function | Standard |
| Motor Type | Brushless (BLDC) |
| Voltage - Rated | 24VDC |
| RPM | 2000 RPM |
| Torque - Rated (oz-in / mNm) | 31.87 / 225 |
| Power - Rated | 45W |
| Encoder Type | - |
| Size / Dimension | Square - 2.244" x 2.244" (57.00mm x 57.00mm) |
| Diameter - Shaft | 0.236" (6.00mm) |
| Length - Shaft and Bearing | 0.984" (25.00mm) |
| Mounting Hole Spacing | 1.575" (40.00mm) |
| Termination Style | Wire Leads |
| Features | External Controller |
| Gear Reduction Ratio | - |
| Torque - Max Momentary (oz-in / mNm) | 70.81 / 500 |
| Operating Temperature | -40°C ~ 70°C |
Submit your RFQ for 80140510 and get a quote within 24 hours.
