HB, SMD, RGB

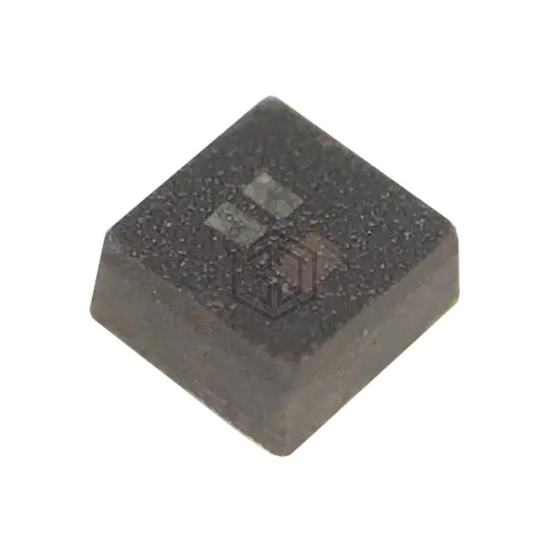

UHD1110-FKA-CL1A13R3Q1BBQFMF3 is a LED Indication - Discrete manufactured by CreeLED, Inc.. HB, SMD, RGB. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 1.9V Red, 2.9V Green, 2.9V Blue, package / case 0404 (1010 Metric), color Red, Green, Blue (RGB).
In Stock: 24,367
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 78mcd Red, 106mcd Green, 24mcd Blue |
| Lens Style | Square with Flat Top |
| Lens Size | 1.00mm |
| Voltage - Forward (Vf) (Typ) | 1.9V Red, 2.9V Green, 2.9V Blue |
| Current - Test | 5mA Red, 5mA Green, 5mA Blue |
| Viewing Angle | - |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 0404 (1010 Metric) |
| Supplier Device Package | 0404 |
| Size / Dimension | 1.00mm L x 1.00mm W |
| Height (Max) | 0.70mm |
Submit your RFQ for UHD1110-FKA-CL1A13R3Q1BBQFMF3 and get a quote within 24 hours.
