LED XLAMP NEUTRAL WHT 4750K 2SMD

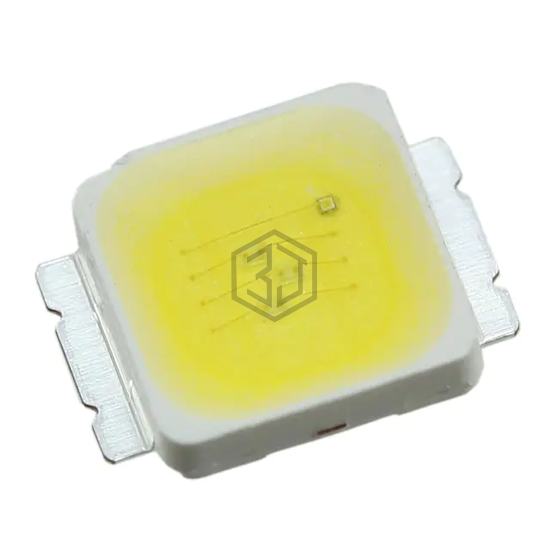

MX3AWT-A1-0000-000CF4 is a LED Lighting - White manufactured by CreeLED, Inc.. LED XLAMP NEUTRAL WHT 4750K 2SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 3.7V, package / case 2-SMD, Gull Wing Exposed Pad, color White, Neutral.
In Stock: 2,439
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | White, Neutral |
| CCT (K) | 4750K |
| Flux @ 85°C, Current - Test | - |
| Flux @ 25°C, Current - Test | 104lm (100lm ~ 107lm) |
| Current - Test | 350mA |
| Voltage - Forward (Vf) (Typ) | 3.7V |
| Lumens/Watt @ Current - Test | 80 lm/W |
| CRI (Color Rendering Index) | 75 (Typ) |
| Current - Max | 500mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, Gull Wing Exposed Pad |
| Supplier Device Package | SMD |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.058" (1.48mm) |
Submit your RFQ for MX3AWT-A1-0000-000CF4 and get a quote within 24 hours.
