LED DRIVER CC AC/DC 22-44V 940MA

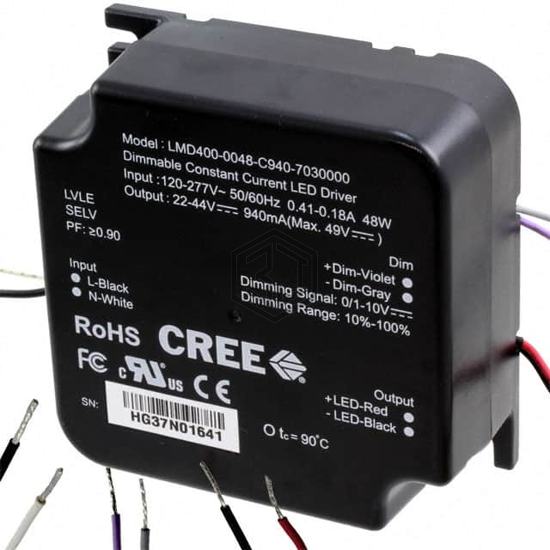

LMD400-0048-C940-7030000 is a LED Drivers manufactured by CreeLED, Inc.. LED DRIVER CC AC/DC 22-44V 940MA. Key specifications: operating temperature 0°C ~ 90°C, voltage - output 22 ~ 44V, current - output (max) 940mA, size / dimension 3.54" L x 3.54" W x 1.48" H (90.0mm x 90.0mm x 37.5mm).
In Stock: 141
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 108VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 22 ~ 44V |
| Current - Output (Max) | 940mA |
| Power (Watts) | 41 W |
| Voltage - Isolation | - |
| Dimming | Analog |
| Features | - |
| Ratings | IP20, NEMA 410 |
| Operating Temperature | 0°C ~ 90°C |
| Efficiency | 87% |
| Termination Style | Wire Leads |
| Size / Dimension | 3.54" L x 3.54" W x 1.48" H (90.0mm x 90.0mm x 37.5mm) |
| Approval Agency | CE, CQC, cULus |
| Standard Number | - |
Submit your RFQ for LMD400-0048-C940-7030000 and get a quote within 24 hours.
