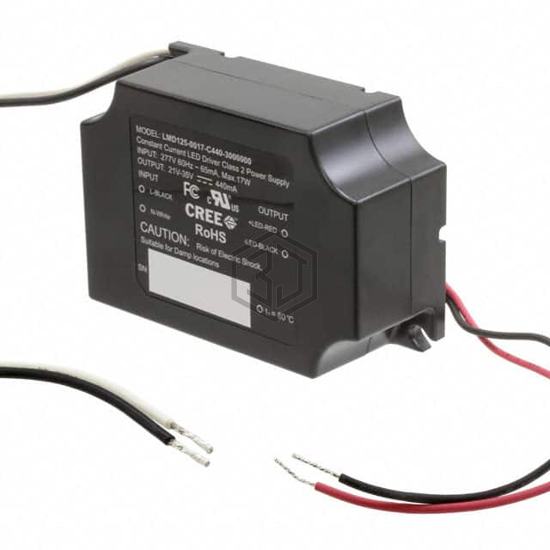

LED DRIVER CC AC/DC 21-35V 440MA
LMD125-0017-C440-3000000 is a LED Drivers manufactured by CreeLED, Inc.. LED DRIVER CC AC/DC 21-35V 440MA. Key specifications: operating temperature 0°C ~ 80°C, voltage - output 21 ~ 35V, current - output (max) 440mA, size / dimension 3.17" L x 2.20" W x 1.16" H (80.4mm x 56.0mm x 29.5mm).
In Stock: 11
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 249VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 21 ~ 35V |
| Current - Output (Max) | 440mA |
| Power (Watts) | 15 W |
| Voltage - Isolation | - |
| Dimming | - |
| Features | - |
| Ratings | IP20, NEMA 410 |
| Operating Temperature | 0°C ~ 80°C |
| Efficiency | 84% |
| Termination Style | Wire Leads |
| Size / Dimension | 3.17" L x 2.20" W x 1.16" H (80.4mm x 56.0mm x 29.5mm) |
| Approval Agency | CE, CQC, cULus |
| Standard Number | - |
Submit your RFQ for LMD125-0017-C440-3000000 and get a quote within 24 hours.
