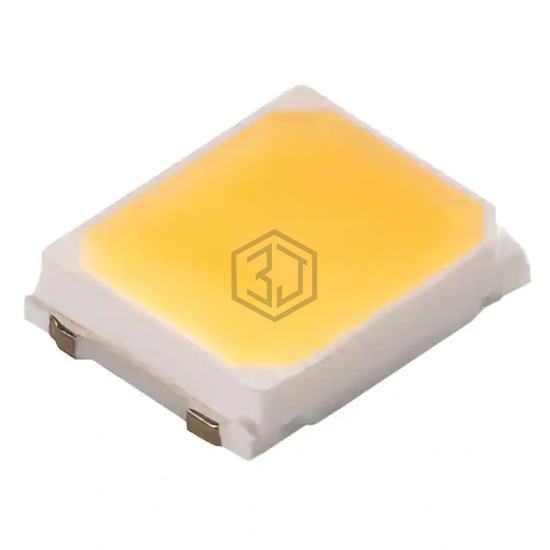

LED WHITE 4000K JK2835B 9V
JK2835BWT-W-H40EC0000-N0000001 is a LED Lighting - White manufactured by CreeLED, Inc.. LED WHITE 4000K JK2835B 9V. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 9.2V, package / case 1113 (2835 Metric), color White, Neutral.
In Stock: 74,333
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | White, Neutral |
| CCT (K) | 4000K 3-Step MacAdam Ellipse |
| Flux @ 85°C, Current - Test | 114lm (Typ) |
| Flux @ 25°C, Current - Test | 131lm (Typ) |
| Current - Test | 100mA |
| Voltage - Forward (Vf) (Typ) | 9.2V |
| Lumens/Watt @ Current - Test | 142 lm/W |
| CRI (Color Rendering Index) | 80 |
| Current - Max | 120mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Package / Case | 1113 (2835 Metric) |
| Supplier Device Package | SMD |
| Size / Dimension | 0.110" L x 0.138" W (2.80mm x 3.50mm) |
| Height - Seated (Max) | 0.035" (0.90mm) |
Submit your RFQ for JK2835BWT-W-H40EC0000-N0000001 and get a quote within 24 hours.
