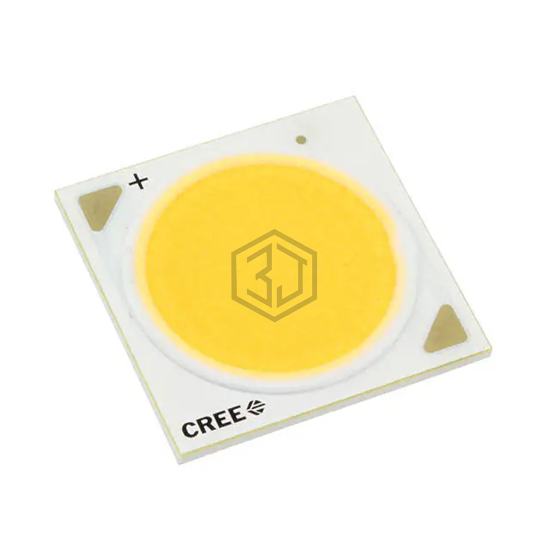

LED COB CXB3590 3500K WHT SMD
CXB3590-0000-000R0UBD35G is a LED Lighting - COBs, Engines, Modules, Strips manufactured by CreeLED, Inc.. LED COB CXB3590 3500K WHT SMD. Key specifications: voltage - forward (vf) (typ) 72V, color White, Warm, current - max 1.8A, size / dimension 34.85mm L x 34.85mm W.
In Stock: 4,373
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Warm |
| CCT (K) | 3500K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 10500lm (10000lm ~ 11000lm) |
| Current - Test | 1.2A |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 72V |
| Lumens/Watt @ Current - Test | 122 lm/W |
| Current - Max | 1.8A |
| CRI (Color Rendering Index) | 90 |
| Viewing Angle | 115° |
| Features | - |
| Size / Dimension | 34.85mm L x 34.85mm W |
| Height | 1.70mm |
| Light Emitting Surface (LES) | 30.00mm Dia |
| Lens Type | Flat |
Submit your RFQ for CXB3590-0000-000R0UBD35G and get a quote within 24 hours.
