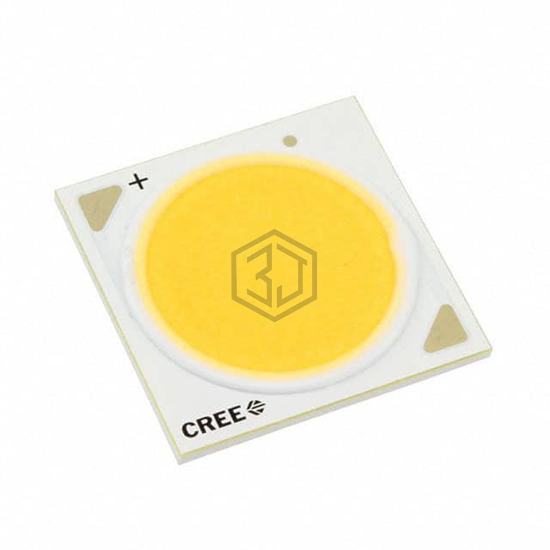

LED ARR 23MM 3000K 80CRI 8500LM
CXB3070-0000-000N0HAB30G is a LED Lighting - COBs, Engines, Modules, Strips manufactured by CreeLED, Inc.. LED ARR 23MM 3000K 80CRI 8500LM. Key specifications: voltage - forward (vf) (typ) 36V, color White, Warm, current - max 2.8A, size / dimension 27.35mm L x 27.35mm W.
In Stock: 293
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Warm |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 8750lm (8500lm ~ 9000lm) |
| Current - Test | 1.9A |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 36V |
| Lumens/Watt @ Current - Test | 128 lm/W |
| Current - Max | 2.8A |
| CRI (Color Rendering Index) | 80 |
| Viewing Angle | 115° |
| Features | - |
| Size / Dimension | 27.35mm L x 27.35mm W |
| Height | 1.70mm |
| Light Emitting Surface (LES) | 23.00mm Dia |
| Lens Type | Flat |
Submit your RFQ for CXB3070-0000-000N0HAB30G and get a quote within 24 hours.
