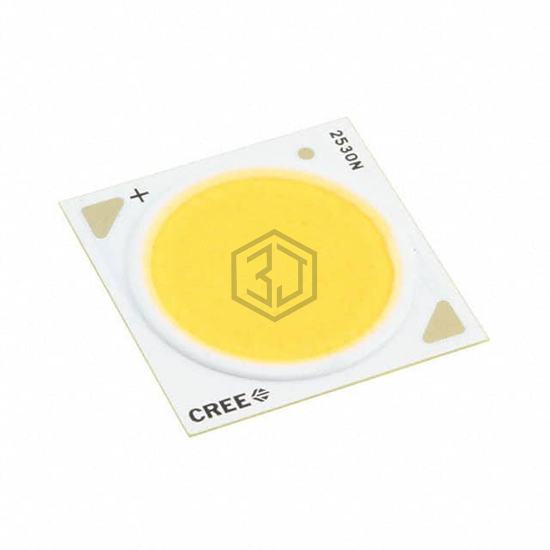

LED COB CXB2530 6500K WHT SMD
CXB2530-0000-000N0BV265E is a LED Lighting - COBs, Engines, Modules, Strips manufactured by CreeLED, Inc.. LED COB CXB2530 6500K WHT SMD. Key specifications: voltage - forward (vf) (typ) 36V, color White, Cool, current - max 1.6A, size / dimension 23.85mm L x 23.85mm W.
In Stock: 6,583
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Cool |
| CCT (K) | 6500K 5-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 4388lm (4230lm ~ 4545lm) |
| Current - Test | 800mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 36V |
| Lumens/Watt @ Current - Test | 152 lm/W |
| Current - Max | 1.6A |
| CRI (Color Rendering Index) | 70 |
| Viewing Angle | 115° |
| Features | - |
| Size / Dimension | 23.85mm L x 23.85mm W |
| Height | 1.70mm |
| Light Emitting Surface (LES) | 19.00mm Dia |
| Lens Type | Flat |
Submit your RFQ for CXB2530-0000-000N0BV265E and get a quote within 24 hours.
