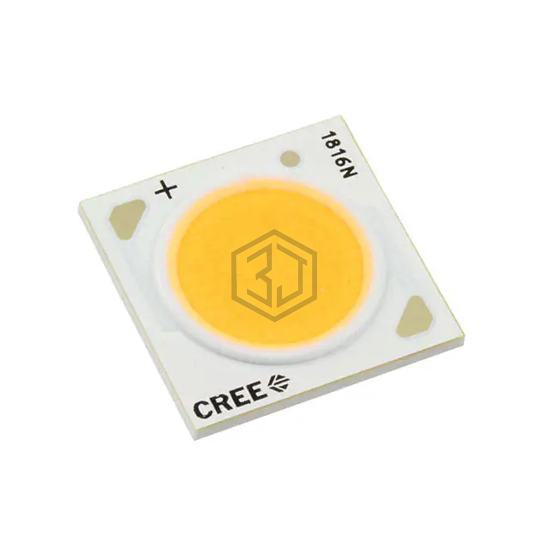

LED COB CXB1816 5000K WHT SMD
CXB1816-0000-000N0HQ450E is a LED Lighting - COBs, Engines, Modules, Strips manufactured by CreeLED, Inc.. LED COB CXB1816 5000K WHT SMD. Key specifications: voltage - forward (vf) (typ) 36V, color White, Cool, current - max 900mA, size / dimension 17.85mm L x 17.85mm W.
In Stock: 3,181
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Cool |
| CCT (K) | 5000K 5-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 2340lm (2260lm ~ 2420lm) |
| Current - Test | 450mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 36V |
| Lumens/Watt @ Current - Test | 144 lm/W |
| Current - Max | 900mA |
| CRI (Color Rendering Index) | 80 |
| Viewing Angle | 115° |
| Features | - |
| Size / Dimension | 17.85mm L x 17.85mm W |
| Height | 1.70mm |
| Light Emitting Surface (LES) | 12.00mm Dia |
| Lens Type | Flat |
Submit your RFQ for CXB1816-0000-000N0HQ450E and get a quote within 24 hours.
