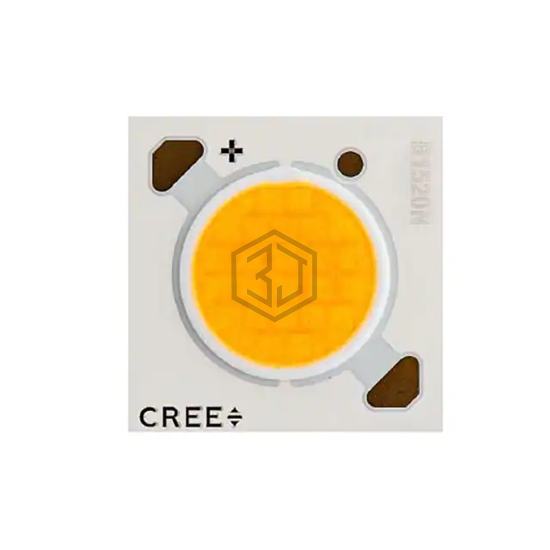

LED COB XLAMP CXB1520 3000K SQ
CXB1520-0000-000N0UP230G is a LED Lighting - COBs, Engines, Modules, Strips manufactured by CreeLED, Inc.. LED COB XLAMP CXB1520 3000K SQ. Key specifications: voltage - forward (vf) (typ) 33V, color White, Warm, current - max 1.4A, size / dimension 15.85mm L x 15.85mm W.
In Stock: 792
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Warm |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 1898lm (1830lm ~ 1965lm) |
| Current - Test | 500mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 33V |
| Lumens/Watt @ Current - Test | 115 lm/W |
| Current - Max | 1.4A |
| CRI (Color Rendering Index) | 90 |
| Viewing Angle | 115° |
| Features | - |
| Size / Dimension | 15.85mm L x 15.85mm W |
| Height | 1.55mm |
| Light Emitting Surface (LES) | 9.00mm Dia |
| Lens Type | Flat |
Submit your RFQ for CXB1520-0000-000N0UP230G and get a quote within 24 hours.
