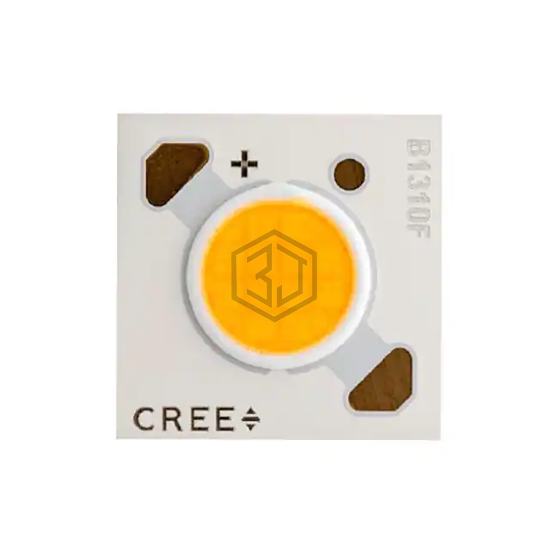

LED COB XLAMP CXB1310 3000K SQ
CXB1310-0000-000N0UJ430U is a LED Lighting - COBs, Engines, Modules, Strips manufactured by CreeLED, Inc.. LED COB XLAMP CXB1310 3000K SQ. Key specifications: voltage - forward (vf) (typ) 36V, color White, Warm, current - max 700mA, size / dimension 13.35mm L x 13.35mm W.
In Stock: 7,283
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Warm |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 1160lm (1120lm ~ 1200lm) |
| Current - Test | 350mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 36V |
| Lumens/Watt @ Current - Test | 92 lm/W |
| Current - Max | 700mA |
| CRI (Color Rendering Index) | 90 |
| Viewing Angle | 115° |
| Features | - |
| Size / Dimension | 13.35mm L x 13.35mm W |
| Height | 1.55mm |
| Light Emitting Surface (LES) | 6.00mm Dia |
| Lens Type | Flat |
Submit your RFQ for CXB1310-0000-000N0UJ430U and get a quote within 24 hours.
