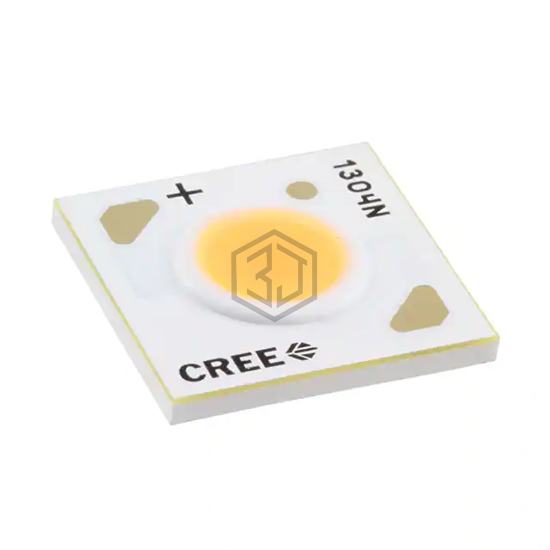

LED ARRAY 6MM 2700K 90CRI 355LM
CXB1304-0000-000C0UA427G is a LED Lighting - COBs, Engines, Modules, Strips manufactured by CreeLED, Inc.. LED ARRAY 6MM 2700K 90CRI 355LM. Key specifications: voltage - forward (vf) (typ) 9V, color White, Warm, current - max 1A, size / dimension 13.35mm L x 13.35mm W.
In Stock: 72
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Warm |
| CCT (K) | 2700K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 368lm (355lm ~ 380lm) |
| Current - Test | 400mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 9V |
| Lumens/Watt @ Current - Test | 102 lm/W |
| Current - Max | 1A |
| CRI (Color Rendering Index) | 90 |
| Viewing Angle | 115° |
| Features | - |
| Size / Dimension | 13.35mm L x 13.35mm W |
| Height | 1.70mm |
| Light Emitting Surface (LES) | 6.00mm Dia |
| Lens Type | Flat |
Submit your RFQ for CXB1304-0000-000C0UA427G and get a quote within 24 hours.
