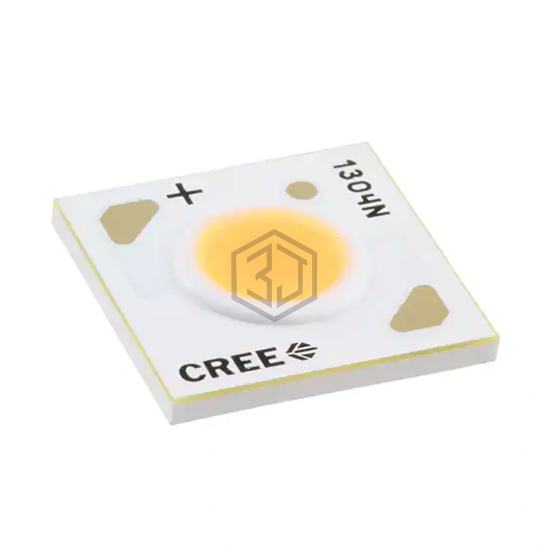

LED COB CXB1304 NEUT WHT SQUARE
CXB1304-0000-000C0HD240G is a LED Lighting - COBs, Engines, Modules, Strips manufactured by CreeLED, Inc.. LED COB CXB1304 NEUT WHT SQUARE. Key specifications: voltage - forward (vf) (typ) 8.6V, color White, Neutral, current - max 1A, size / dimension 13.35mm L x 13.35mm W.
In Stock: 7,423
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Neutral |
| CCT (K) | 4000K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 530lm (510lm ~ 550lm) |
| Current - Test | 400mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 8.6V |
| Lumens/Watt @ Current - Test | 154 lm/W |
| Current - Max | 1A |
| CRI (Color Rendering Index) | 80 |
| Viewing Angle | 115° |
| Features | - |
| Size / Dimension | 13.35mm L x 13.35mm W |
| Height | 1.70mm |
| Light Emitting Surface (LES) | 6.00mm Dia |
| Lens Type | Flat |
