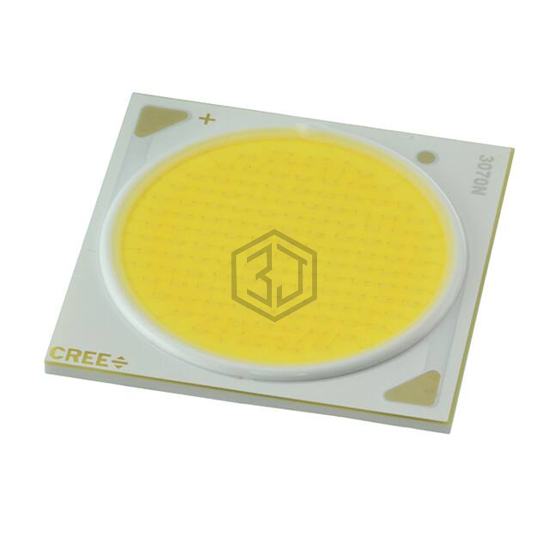

CXA3070-0000-000N0YY235G - CreeLED, Inc. - LED Lighting - COBs, Engines, Modules, Strips

CXA3070-0000-000N0YY235G

CreeLED, Inc.

LED COB CXA3070 3500K WHT SMD

CXA3070-0000-000N0YY235G is a LED Lighting - COBs, Engines, Modules, Strips manufactured by CreeLED, Inc.. LED COB CXA3070 3500K WHT SMD. Key specifications: voltage - forward (vf) (typ) 36V, color White, Warm, current - max 2.8A, size / dimension 27.35mm L x 27.35mm W.

In Stock: 2,730

Product Attributes

AttributeValue
Product StatusActive
TypeChip On Board (COB)
ColorWhite, Warm
CCT (K)3500K 3-Step MacAdam Ellipse
Wavelength-
ConfigurationSquare
Luminous Flux @ Current/Temperature6670lm (6430lm ~ 6910lm)
Current - Test1.9A
Temperature - Test85°C
Voltage - Forward (Vf) (Typ)36V
Lumens/Watt @ Current - Test98 lm/W
Current - Max2.8A
CRI (Color Rendering Index)93
Viewing Angle115°
Features-
Size / Dimension27.35mm L x 27.35mm W
Height1.70mm
Light Emitting Surface (LES)23.00mm Dia
Lens TypeFlat

Frequently Asked Questions

CXA3070-0000-000N0YY235G is a LED Lighting - COBs, Engines, Modules, Strips manufactured by CreeLED, Inc.. LED COB CXA3070 3500K WHT SMD

The supply voltage of CXA3070-0000-000N0YY235G is 36V.

The color of CXA3070-0000-000N0YY235G is White, Warm.

The current rating of CXA3070-0000-000N0YY235G is 2.8A.
