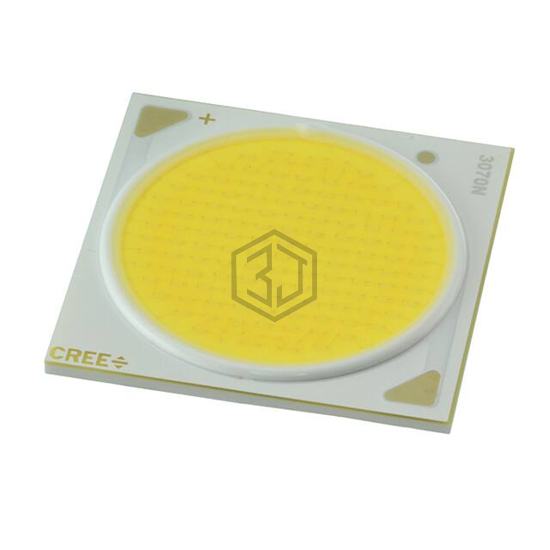

LED ARRAY XLAMP CXA3070 23MM WHT
CXA3070-0000-000N00Z440H is a LED Lighting - COBs, Engines, Modules, Strips manufactured by CreeLED, Inc.. LED ARRAY XLAMP CXA3070 23MM WHT. Key specifications: voltage - forward (vf) (typ) 38.5V, color White, Neutral, current - max 2.8A, size / dimension 27.35mm L x 27.35mm W.
In Stock: 5,021
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Neutral |
| CCT (K) | 4000K 2-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 8073lm (7945lm ~ 8500lm) |
| Current - Test | 1.925A |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 38.5V |
| Lumens/Watt @ Current - Test | 109 lm/W |
| Current - Max | 2.8A |
| CRI (Color Rendering Index) | 70 |
| Viewing Angle | 115° |
| Features | - |
| Size / Dimension | 27.35mm L x 27.35mm W |
| Height | 1.70mm |
| Light Emitting Surface (LES) | 23.00mm Dia |
| Lens Type | Flat |
Submit your RFQ for CXA3070-0000-000N00Z440H and get a quote within 24 hours.
