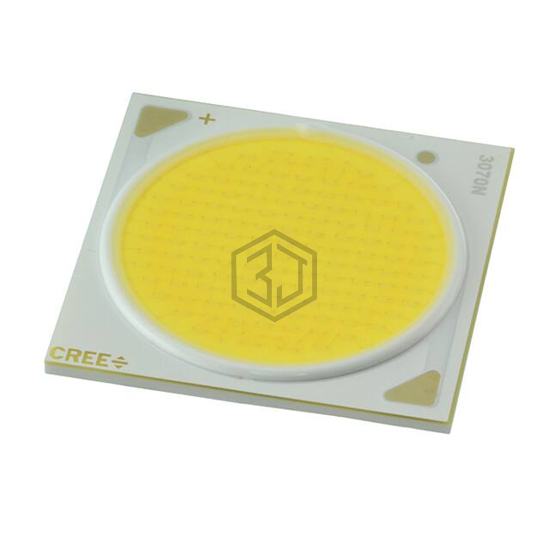

LED COB CXA3070 NEUTRAL WHITE SQ
CXA3070-0000-000N00Z240F is a LED Lighting - COBs, Engines, Modules, Strips manufactured by CreeLED, Inc.. LED COB CXA3070 NEUTRAL WHITE SQ. Key specifications: voltage - forward (vf) (typ) 38.5V, color White, Neutral, current - max 2.8A, size / dimension 23.85mm L x 23.85mm W.
In Stock: 68
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Neutral |
| CCT (K) | 4000K 4-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 7668lm (7390lm ~ 7945lm) |
| Current - Test | 1.925A |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 38.5V |
| Lumens/Watt @ Current - Test | 103 lm/W |
| Current - Max | 2.8A |
| CRI (Color Rendering Index) | 70 |
| Viewing Angle | 115° |
| Features | - |
| Size / Dimension | 23.85mm L x 23.85mm W |
| Height | 1.70mm |
| Light Emitting Surface (LES) | 23.00mm Dia |
| Lens Type | Flat |
Submit your RFQ for CXA3070-0000-000N00Z240F and get a quote within 24 hours.
