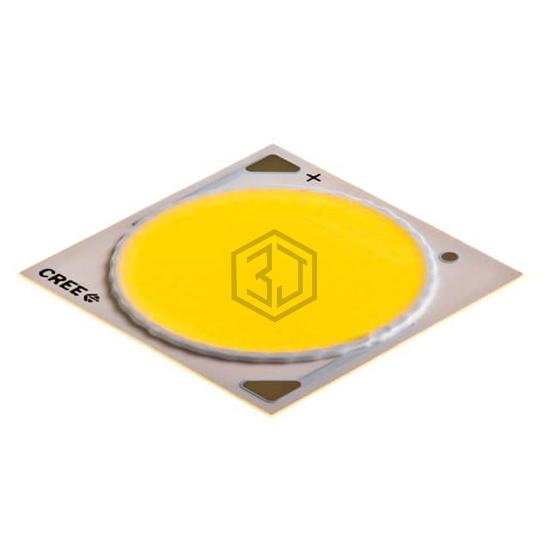

LED COB CXA3050 3500K WHT SMD
CXA3050-0000-000N0YV435G is a LED Lighting - COBs, Engines, Modules, Strips manufactured by CreeLED, Inc.. LED COB CXA3050 3500K WHT SMD. Key specifications: voltage - forward (vf) (typ) 36V, color White, Warm, current - max 2.5A, size / dimension 27.35mm L x 27.35mm W.
In Stock: 7,704
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Warm |
| CCT (K) | 3500K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 4703lm (4545lm ~ 4860lm) |
| Current - Test | 1.4A |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 36V |
| Lumens/Watt @ Current - Test | 93 lm/W |
| Current - Max | 2.5A |
| CRI (Color Rendering Index) | 93 |
| Viewing Angle | 115° |
| Features | - |
| Size / Dimension | 27.35mm L x 27.35mm W |
| Height | 1.70mm |
| Light Emitting Surface (LES) | 23.00mm Dia |
| Lens Type | Flat |
Submit your RFQ for CXA3050-0000-000N0YV435G and get a quote within 24 hours.
