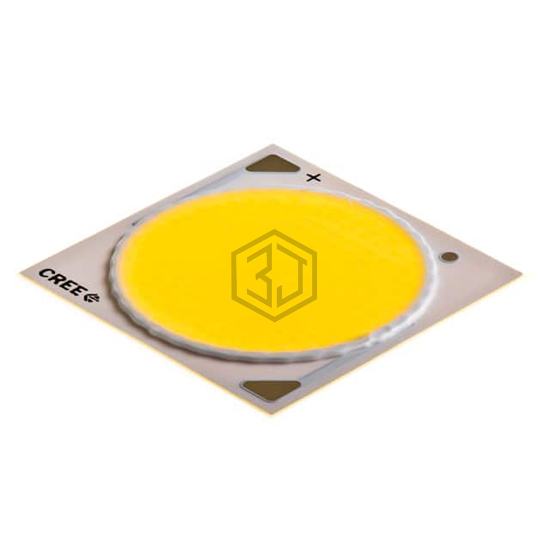

CXA3050-0000-000N0UV20E3 - CreeLED, Inc. - LED Lighting - COBs, Engines, Modules, Strips

CXA3050-0000-000N0UV20E3

CreeLED, Inc.

LED COB XLAMP CXA3050 5000K SQ

CXA3050-0000-000N0UV20E3 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by CreeLED, Inc.. LED COB XLAMP CXA3050 5000K SQ. Key specifications: voltage - forward (vf) (typ) 37V, color White, Cool, current - max 2.5A, size / dimension 27.35mm L x 27.35mm W.

In Stock: 4,521

Product Attributes

AttributeValue
Product StatusActive
TypeChip On Board (COB)
ColorWhite, Cool
CCT (K)5000K
Wavelength-
ConfigurationSquare
Luminous Flux @ Current/Temperature4388lm (4230lm ~ 4545lm)
Current - Test1.4A
Temperature - Test85°C
Voltage - Forward (Vf) (Typ)37V
Lumens/Watt @ Current - Test85 lm/W
Current - Max2.5A
CRI (Color Rendering Index)90
Viewing Angle115°
Features-
Size / Dimension27.35mm L x 27.35mm W
Height1.70mm
Light Emitting Surface (LES)23.00mm Dia
Lens TypeFlat

Frequently Asked Questions

CXA3050-0000-000N0UV20E3 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by CreeLED, Inc.. LED COB XLAMP CXA3050 5000K SQ

The supply voltage of CXA3050-0000-000N0UV20E3 is 37V.

The color of CXA3050-0000-000N0UV20E3 is White, Cool.

The current rating of CXA3050-0000-000N0UV20E3 is 2.5A.
