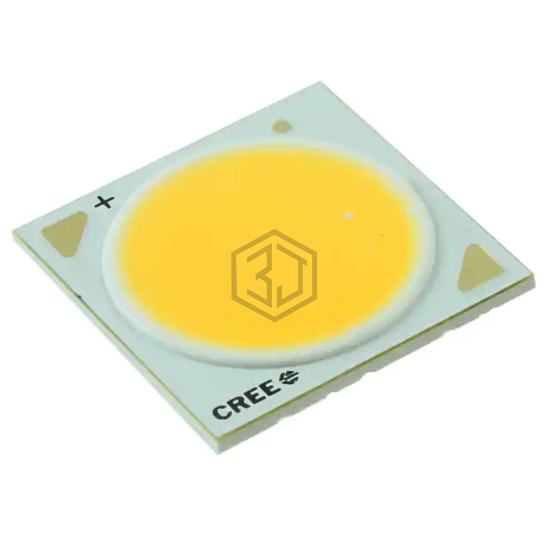

LED ARRAY XLAMP CXA2530 19MM WHT
CXA2530-0000-000N0UR40E5 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by CreeLED, Inc.. LED ARRAY XLAMP CXA2530 19MM WHT. Key specifications: voltage - forward (vf) (typ) 37V, color White, Neutral, current - max 1.6A, size / dimension 23.85mm L x 23.85mm W.
In Stock: 4,049
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Neutral |
| CCT (K) | 4000K |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 2690lm (2600lm ~ 2780lm) |
| Current - Test | 800mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 37V |
| Lumens/Watt @ Current - Test | 91 lm/W |
| Current - Max | 1.6A |
| CRI (Color Rendering Index) | 93 |
| Viewing Angle | 115° |
| Features | - |
| Size / Dimension | 23.85mm L x 23.85mm W |
| Height | 1.70mm |
| Light Emitting Surface (LES) | 19.00mm Dia |
| Lens Type | Flat |
