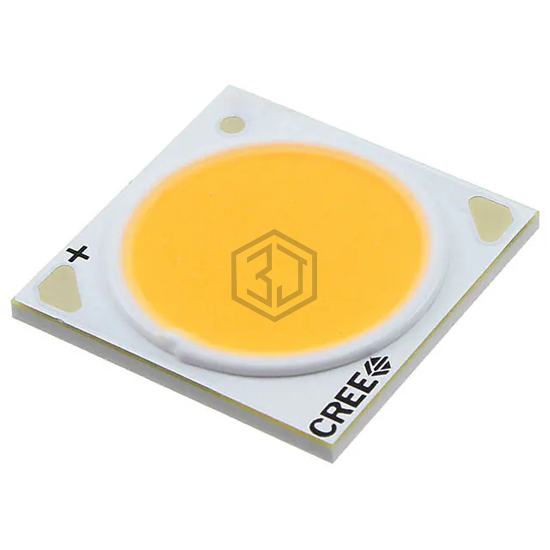

CXA1830-0000-000N0HT40E5 - CreeLED, Inc. - LED Lighting - COBs, Engines, Modules, Strips

CXA1830-0000-000N0HT40E5

CreeLED, Inc.

LED COB CXA1830 NEUTRAL WHITE SQ

CXA1830-0000-000N0HT40E5 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by CreeLED, Inc.. LED COB CXA1830 NEUTRAL WHITE SQ. Key specifications: voltage - forward (vf) (typ) 37V, color White, Neutral, current - max 1.4A, size / dimension 17.85mm L x 17.85mm W.

In Stock: 1,862

Product Attributes

AttributeValue
Product StatusActive
TypeChip On Board (COB)
ColorWhite, Neutral
CCT (K)4000K
Wavelength-
ConfigurationSquare
Luminous Flux @ Current/Temperature3560lm (3440lm ~ 3680lm)
Current - Test800mA
Temperature - Test85°C
Voltage - Forward (Vf) (Typ)37V
Lumens/Watt @ Current - Test120 lm/W
Current - Max1.4A
CRI (Color Rendering Index)80
Viewing Angle115°
Features-
Size / Dimension17.85mm L x 17.85mm W
Height1.70mm
Light Emitting Surface (LES)14.00mm Dia
Lens TypeFlat

Frequently Asked Questions

CXA1830-0000-000N0HT40E5 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by CreeLED, Inc.. LED COB CXA1830 NEUTRAL WHITE SQ

The supply voltage of CXA1830-0000-000N0HT40E5 is 37V.

The color of CXA1830-0000-000N0HT40E5 is White, Neutral.

The current rating of CXA1830-0000-000N0HT40E5 is 1.4A.
