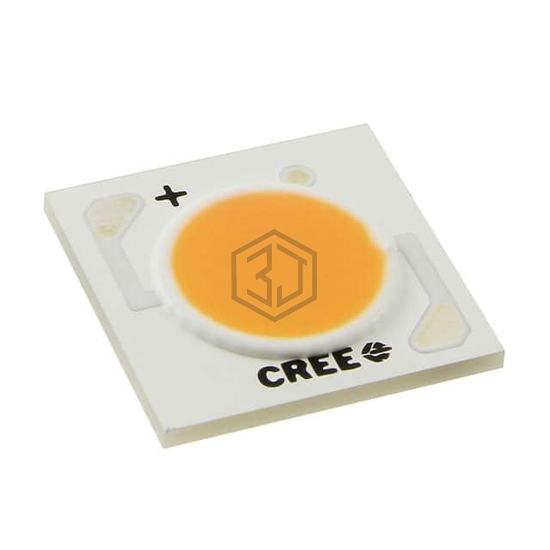

LED ARRAY XLAMP CXA1520 WHITE
CXA1520-0000-000N0HN240F is a LED Lighting - COBs, Engines, Modules, Strips manufactured by CreeLED, Inc.. LED ARRAY XLAMP CXA1520 WHITE. Key specifications: voltage - forward (vf) (typ) 35V, color White, Neutral, current - max 900mA, size / dimension 15.85mm L x 15.85mm W.
In Stock: 76
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Chip On Board (COB) |
| Color | White, Neutral |
| CCT (K) | 4000K 4-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 2180lm (2100lm ~ 2260lm) |
| Current - Test | 500mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 35V |
| Lumens/Watt @ Current - Test | 125 lm/W |
| Current - Max | 900mA |
| CRI (Color Rendering Index) | 80 |
| Viewing Angle | 115° |
| Features | - |
| Size / Dimension | 15.85mm L x 15.85mm W |
| Height | 1.70mm |
| Light Emitting Surface (LES) | 8.90mm Dia |
| Lens Type | Flat |
Submit your RFQ for CXA1520-0000-000N0HN240F and get a quote within 24 hours.
