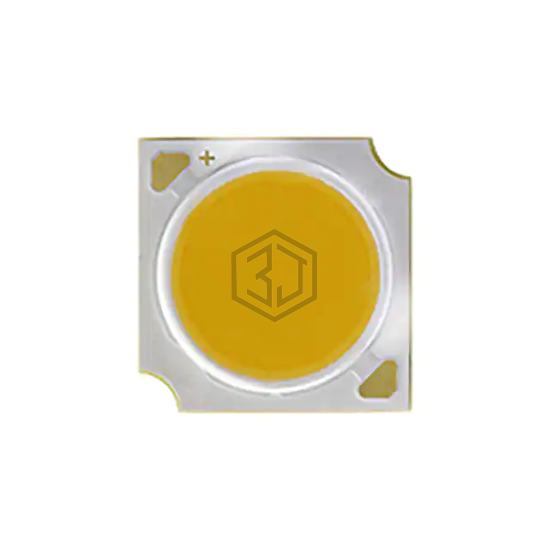

LED LIGHTING CHIP-ON-BOARD (COB)
CMT1420-0000-00PN0U0A30G is a LED Lighting - COBs, Engines, Modules, Strips manufactured by CreeLED, Inc.. LED LIGHTING CHIP-ON-BOARD (COB). Key specifications: voltage - forward (vf) (typ) 34.4V, color White, Warm, current - max 1.05A, size / dimension 13.50mm L x 13.50mm W.
In Stock: 32
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Warm |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 2480lm (Typ) |
| Current - Test | 550mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 34.4V |
| Lumens/Watt @ Current - Test | 131 lm/W |
| Current - Max | 1.05A |
| CRI (Color Rendering Index) | 90 |
| Viewing Angle | 115° |
| Features | - |
| Size / Dimension | 13.50mm L x 13.50mm W |
| Height | 1.45mm |
| Light Emitting Surface (LES) | 9.80mm Dia |
| Lens Type | Flat |
Submit your RFQ for CMT1420-0000-00PN0U0A30G and get a quote within 24 hours.
