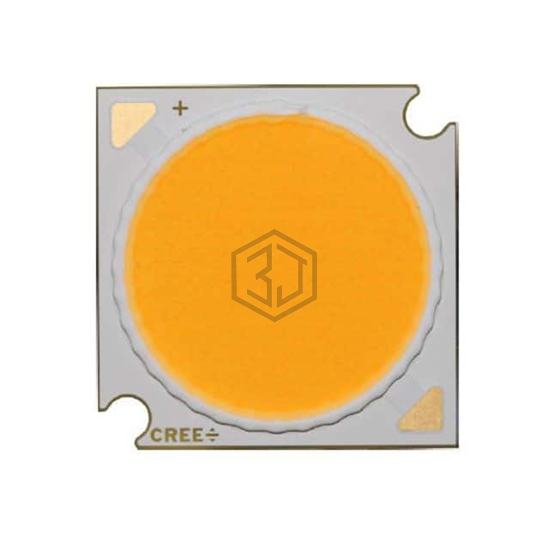

XLAMP CMA LIGHT EMITTING DIODE W
CMA3090-0000-000Q0U0A27G is a LED Lighting - COBs, Engines, Modules, Strips manufactured by CreeLED, Inc.. XLAMP CMA LIGHT EMITTING DIODE W. Key specifications: voltage - forward (vf) (typ) 45V, color White, Warm, current - max 3.6A, size / dimension 27.35mm L x 27.35mm W.
In Stock: 2,920
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Warm |
| CCT (K) | 2700K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 9461lm (Typ) |
| Current - Test | 1.8A |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 45V |
| Lumens/Watt @ Current - Test | 117 lm/W |
| Current - Max | 3.6A |
| CRI (Color Rendering Index) | 90 |
| Viewing Angle | 115° |
| Features | - |
| Size / Dimension | 27.35mm L x 27.35mm W |
| Height | 1.70mm |
| Light Emitting Surface (LES) | 23.00mm Dia |
| Lens Type | Flat |
Submit your RFQ for CMA3090-0000-000Q0U0A27G and get a quote within 24 hours.
