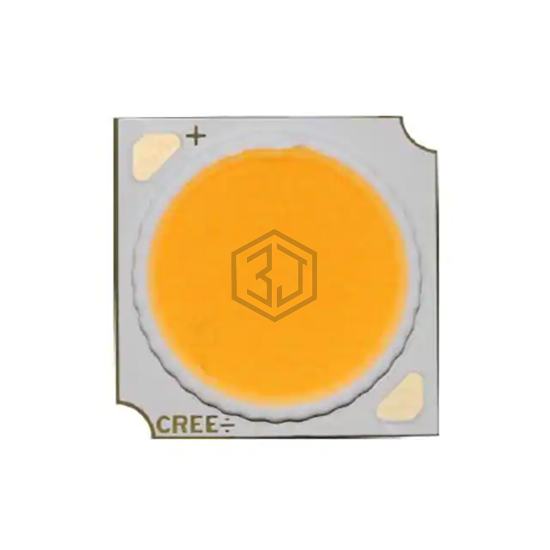

XLAMP CMA LIGHT EMITTING DIODE W
CMA1840-0000-000N0U0A40H is a LED Lighting - COBs, Engines, Modules, Strips manufactured by CreeLED, Inc.. XLAMP CMA LIGHT EMITTING DIODE W. Key specifications: voltage - forward (vf) (typ) 34.7V, color White, Neutral, current - max 2.3A, size / dimension 17.85mm L x 17.85mm W.
In Stock: 1,234
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Neutral |
| CCT (K) | 4000K 2-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 4817lm (Typ) |
| Current - Test | 1.1A |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 34.7V |
| Lumens/Watt @ Current - Test | 126 lm/W |
| Current - Max | 2.3A |
| CRI (Color Rendering Index) | 90 |
| Viewing Angle | 115° |
| Features | - |
| Size / Dimension | 17.85mm L x 17.85mm W |
| Height | 1.70mm |
| Light Emitting Surface (LES) | 14.00mm Dia |
| Lens Type | Flat |
