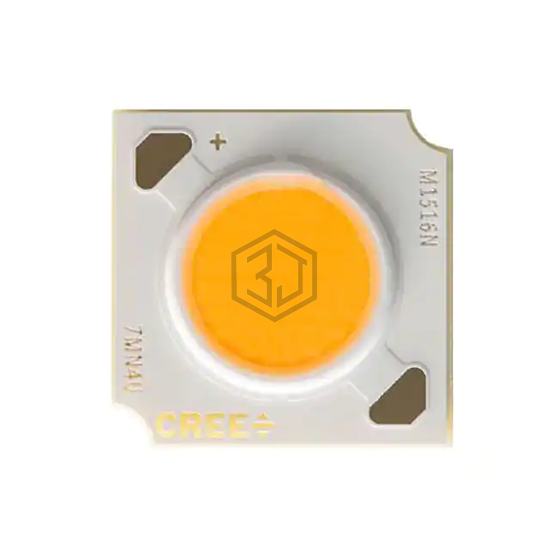

XLAMP CMA LIGHT EMITTING DIODE W
CMA1516-0000-000N0Z0AL5A is a LED Lighting - COBs, Engines, Modules, Strips manufactured by CreeLED, Inc.. XLAMP CMA LIGHT EMITTING DIODE W. Key specifications: voltage - forward (vf) (typ) 35V, color White, Neutral, current - max 1.05A, size / dimension 15.85mm L x 15.85mm W.
In Stock: 2,924
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Neutral |
| CCT (K) | 4000K 2-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 1750lm (Typ) |
| Current - Test | 450mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 35V |
| Lumens/Watt @ Current - Test | 111 lm/W |
| Current - Max | 1.05A |
| CRI (Color Rendering Index) | 95 |
| Viewing Angle | 115° |
| Features | - |
| Size / Dimension | 15.85mm L x 15.85mm W |
| Height | 1.70mm |
| Light Emitting Surface (LES) | 9.00mm Dia |
| Lens Type | Flat |
Submit your RFQ for CMA1516-0000-000N0Z0AL5A and get a quote within 24 hours.
