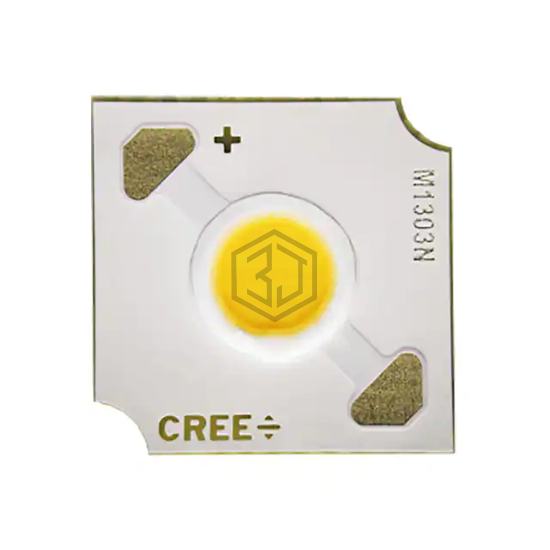

LED COB CMA1304 4000K WHT SMD
CMA1303-0000-000C0U0A40G is a LED Lighting - COBs, Engines, Modules, Strips manufactured by CreeLED, Inc.. LED COB CMA1304 4000K WHT SMD. Key specifications: voltage - forward (vf) (typ) 9.35V, color White, Neutral, current - max 1.4A, size / dimension 13.35mm L x 13.35mm W.
In Stock: 67
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Neutral |
| CCT (K) | 4000K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 709lm (Typ) |
| Current - Test | 700mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 9.35V |
| Lumens/Watt @ Current - Test | 108 lm/W |
| Current - Max | 1.4A |
| CRI (Color Rendering Index) | 90 |
| Viewing Angle | 116° |
| Features | - |
| Size / Dimension | 13.35mm L x 13.35mm W |
| Height | 1.70mm |
| Light Emitting Surface (LES) | 4.50mm Dia |
| Lens Type | Flat |
Submit your RFQ for CMA1303-0000-000C0U0A40G and get a quote within 24 hours.
