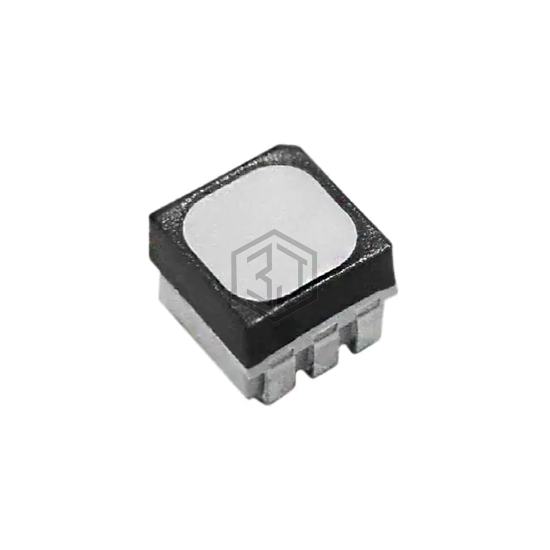

LED RGB DIFFUSED 6PLCC SMD
CLX6E-FKC-CH1M1D1BB7C3D3 is a LED Indication - Discrete manufactured by CreeLED, Inc.. LED RGB DIFFUSED 6PLCC SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Red, 2.8V Green, 3V Blue, package / case 6-SMD, J-Lead, color Red, Green, Blue (RGB).
In Stock: 18,447
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Independent |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 533mcd Red, 1055mcd Green, 248mcd Blue |
| Lens Style | Square with Flat Top |
| Lens Size | - |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2.8V Green, 3V Blue |
| Current - Test | 15mA Red, 10mA Green, 10mA Blue |
| Viewing Angle | - |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 622nm Red, 528nm Green, 470nm Blue |
| Wavelength - Peak | - |
| Features | IPX8 |
| Package / Case | 6-SMD, J-Lead |
| Supplier Device Package | 6-PLCC |
| Size / Dimension | 3.40mm L x 3.40mm W |
| Height (Max) | 2.90mm |
Submit your RFQ for CLX6E-FKC-CH1M1D1BB7C3D3 and get a quote within 24 hours.
