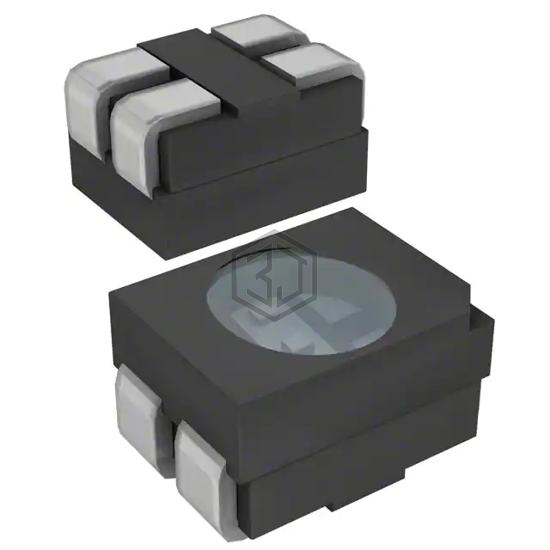

LED RGB DIFFUSED 4PLCC SMD
CLVBA-FKA-CAEDH8BBB7A363 is a LED Indication - Discrete manufactured by CreeLED, Inc.. LED RGB DIFFUSED 4PLCC SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 1.9V Red, 3V Green, 3V Blue, package / case 4-PLCC, color Red, Green, Blue (RGB).
In Stock: 24,888
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 148mcd Red, 295mcd Green, 74mcd Blue |
| Lens Style | Round with Flat Top |
| Lens Size | - |
| Voltage - Forward (Vf) (Typ) | 1.9V Red, 3V Green, 3V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | - |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 622nm Red, 530nm Green, 470nm Blue |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 4-PLCC |
| Supplier Device Package | 4-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 2.10mm |
Submit your RFQ for CLVBA-FKA-CAEDH8BBB7A363 and get a quote within 24 hours.
