SWITCH REED SPST-NO 250MA 175V

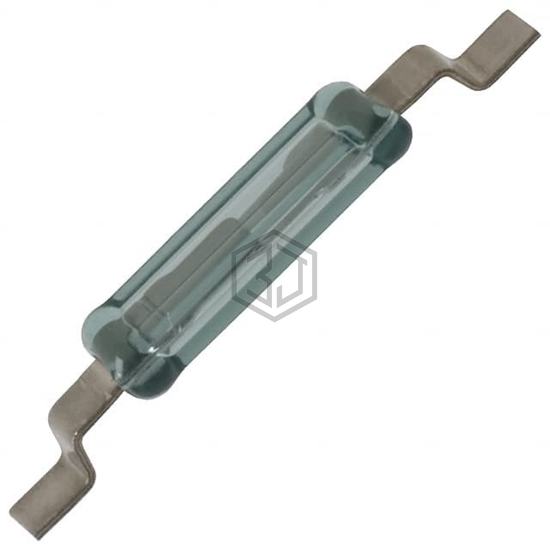

UM2315 is a Magnetic, Reed Switches manufactured by Coto Technology. SWITCH REED SPST-NO 250MA 175V. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, termination style Gull Wing, power - rated 5VA.
In Stock: 5,328
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Glass Body Reed |
| Circuit | SPST-NO |
| Operate Range | 10 ~ 20AT |
| Release Range | - |
| Current - Switching | 250mA (AC/DC) |
| Voltage - Switching AC | 175 V |
| Voltage - Switching DC | 175 V |
| Power - Rated | 5VA |
| Operate Time | 0.4 ms |
| Release Time | 0.1 ms |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Length - Overall | 0.400" (10.16mm) |
| Size - Body | 0.232" L x 0.076" W x 0.060" H (5.89mm x 1.93mm x 1.53mm) |
| Height Above Board | 0.064" (1.64mm) |
| Operating Temperature | -40°C ~ 125°C |
| Capacitance | 0.3 pF |
| Current - Carry | 500mA (AC/DC) |
Submit your RFQ for UM2315 and get a quote within 24 hours.
