SWITCH REED SPST-NO 1MA 6V

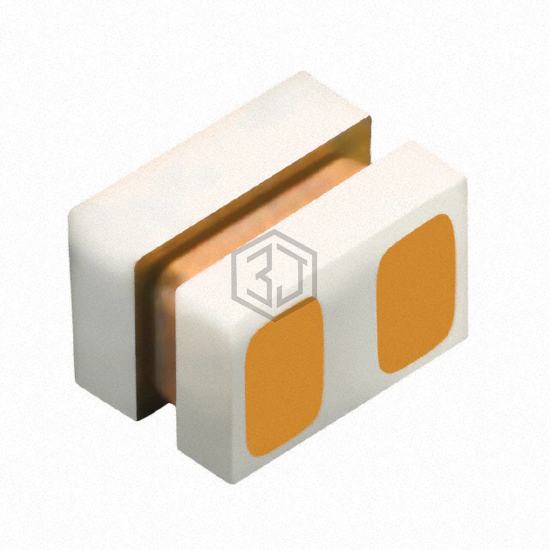

RR100-JWTR is a Magnetic, Reed Switches manufactured by Coto Technology. SWITCH REED SPST-NO 1MA 6V. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, termination style SMD (SMT) Tab, capacitance 0.2 pF.
In Stock: 5,600
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Molded Body Reed |
| Circuit | SPST-NO |
| Operate Range | 20mT |
| Release Range | - |
| Current - Switching | 1mA (DC) |
| Voltage - Switching AC | - |
| Voltage - Switching DC | 6 V |
| Power - Rated | - |
| Operate Time | 0.5 ms |
| Release Time | 0.5 ms |
| Mounting Type | Surface Mount |
| Termination Style | SMD (SMT) Tab |
| Length - Overall | 0.052" (1.32mm) |
| Size - Body | 0.052" L x 0.033" W x 0.041" H (1.32mm x 0.84mm x 1.05mm) |
| Height Above Board | 0.041" (1.05mm) |
| Operating Temperature | -40°C ~ 85°C |
| Capacitance | 0.2 pF |
| Current - Carry | - |
