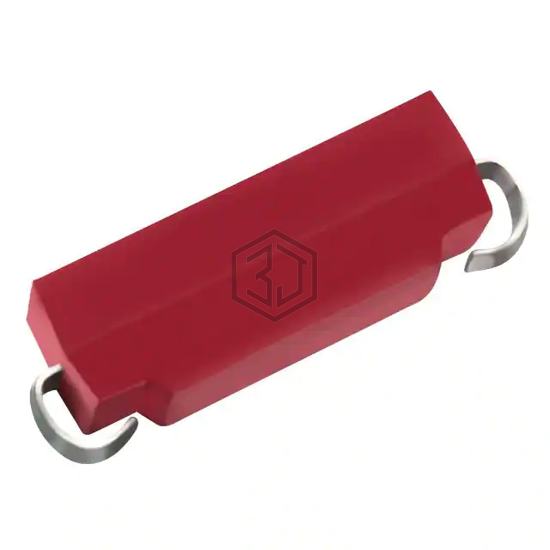

SWITCH REED SPST-NO 250MA 100V
CT05-1535-J1 is a Magnetic, Reed Switches manufactured by Coto Technology. SWITCH REED SPST-NO 250MA 100V. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, termination style J Lead, power - rated 5W.
In Stock: 1,480
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded Body Reed |
| Circuit | SPST-NO |
| Operate Range | 15 ~ 35AT |
| Release Range | - |
| Current - Switching | 250mA (AC), 350mA (DC) |
| Voltage - Switching AC | 100 V |
| Voltage - Switching DC | 140 V |
| Power - Rated | 5W |
| Operate Time | - |
| Release Time | - |
| Mounting Type | Surface Mount |
| Termination Style | J Lead |
| Length - Overall | 0.298" (7.57mm) |
| Size - Body | 0.252" L x 0.091" W x 0.091" H (6.40mm x 2.31mm x 2.31mm) |
| Height Above Board | 0.094" (2.40mm) |
| Operating Temperature | -40°C ~ 125°C |
| Capacitance | - |
| Current - Carry | 500mA (DC) |
