SWITCH REED SPST-NO 500MA 200V

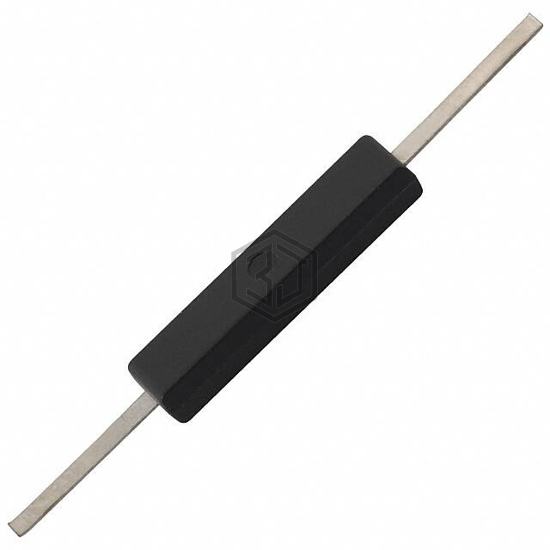

CM15S1020 is a Magnetic, Reed Switches manufactured by Coto Technology. SWITCH REED SPST-NO 500MA 200V. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, termination style Axial, Flat, power - rated 10VA.
In Stock: 8,846
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Molded Body Reed |
| Circuit | SPST-NO |
| Operate Range | 10 ~ 20AT |
| Release Range | - |
| Current - Switching | 500mA (AC/DC) |
| Voltage - Switching AC | 200 V |
| Voltage - Switching DC | 200 V |
| Power - Rated | 10VA |
| Operate Time | 0.5 ms |
| Release Time | 0.2 ms |
| Mounting Type | Surface Mount |
| Termination Style | Axial, Flat |
| Length - Overall | 1.360" (34.54mm) |
| Size - Body | 0.640" L x 0.150" W x 0.106" H (16.25mm x 3.80mm x 2.70mm) |
| Height Above Board | - |
| Operating Temperature | -40°C ~ 125°C |
| Capacitance | 0.3 pF |
| Current - Carry | 1.5A (AC/DC) |
Submit your RFQ for CM15S1020 and get a quote within 24 hours.
