Cornell Dubilier Electronics (CDE)

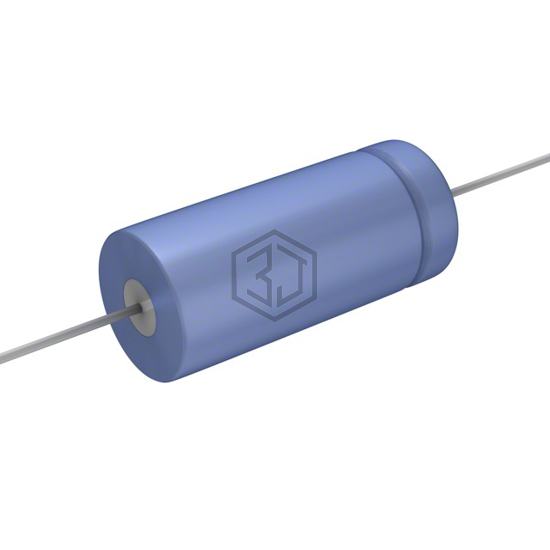

CAP ALUM 10UF 150V AXIAL
WBR10-150A is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 10UF 150V AXIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 150 V, package / case Axial, Can.
In Stock: 14
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | -10%, +100% |
| Voltage - Rated | 150 V |
| ESR (Equivalent Series Resistance) | 31Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 34 mA @ 120 Hz |
| Ripple Current @ High Frequency | 40.8 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.400" Dia x 0.880" L (10.16mm x 22.35mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
