Cornell Dubilier Electronics (CDE)

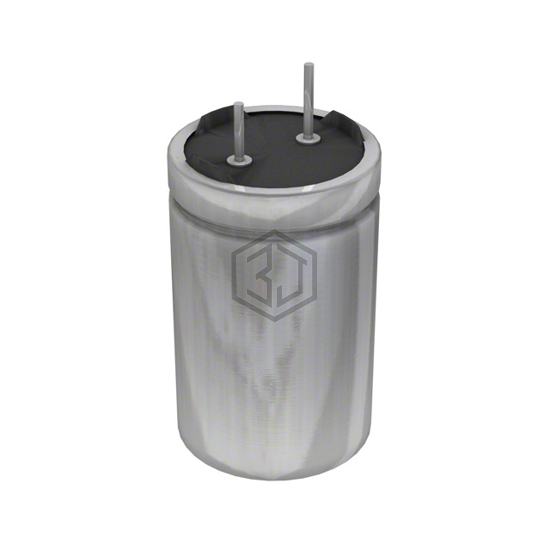

CAP ALUM 3200UF 16V RADIAL
VPR322U016N1L is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 3200UF 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 2,926
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3200 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 29mOhm @ 10kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.637 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.402" (10.20mm) |
| Size / Dimension | 1.000" Dia (25.40mm) |
| Height - Seated (Max) | 1.626" (41.30mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| THAS322M050AD1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 3200UF 20% 50V FLATPACK | 70% | View |
| THAS322M050AD0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 3200UF 20% 50V FLATPACK | 70% | View |
| MAL213664332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 10V RADIAL | 67% | View |
| ELBG350ELL322AUP1S | United Chemi-Con | CAP ALUM 3200UF 35V RADIAL | 66% | View |
| MLSH322M030JK0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 3200UF 20% 30V RADIAL | 60% | View |
| ELBK350ELL312AM20S | United Chemi-Con | CAP ALUM 3100UF 35V RADIAL | 58% | View |
Submit your RFQ for VPR322U016N1L and get a quote within 24 hours.
