Cornell Dubilier Electronics (CDE)

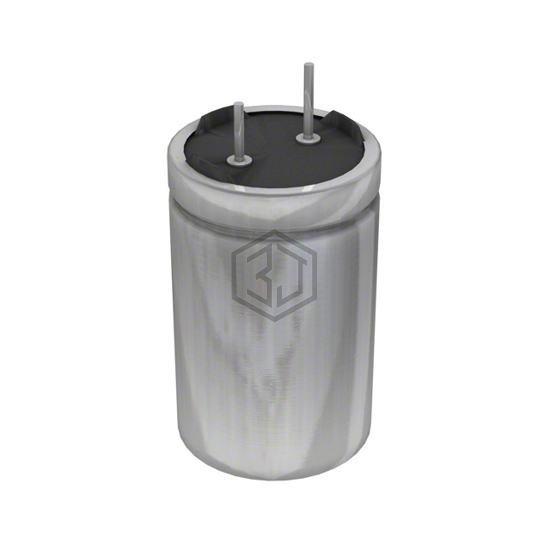

CAP ALUM 1800UF 25V RADIAL
VPR182U025N1L is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 1800UF 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 5,548
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 35mOhm @ 10kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.006 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.402" (10.20mm) |
| Size / Dimension | 1.000" Dia (25.40mm) |
| Height - Seated (Max) | 1.626" (41.30mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXZ350ELL182ML25S | United Chemi-Con | CAP ALUM 1800UF 20% 35V RADIAL | 81% | View |
| MAL213660182E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 35V RADIAL | 78% | View |
| UPA1V182MHD6TN | Nichicon | CAP ALUM 1800UF 20% 35V RADIAL | 78% | View |
| 601D188F040HJ1 | Vishay Sprague | CAP ALUM 1800UF 40V AXIAL | 70% | View |
| EEU-FC1A182SB | Panasonic Electronic Components | CAP ALUM 1800UF 20% 10V RADIAL | 53% | View |
| UPA1A182MPD6 | Nichicon | CAP ALUM 1800UF 20% 10V RADIAL | 53% | View |
Submit your RFQ for VPR182U025N1L and get a quote within 24 hours.
