Cornell Dubilier Electronics (CDE)

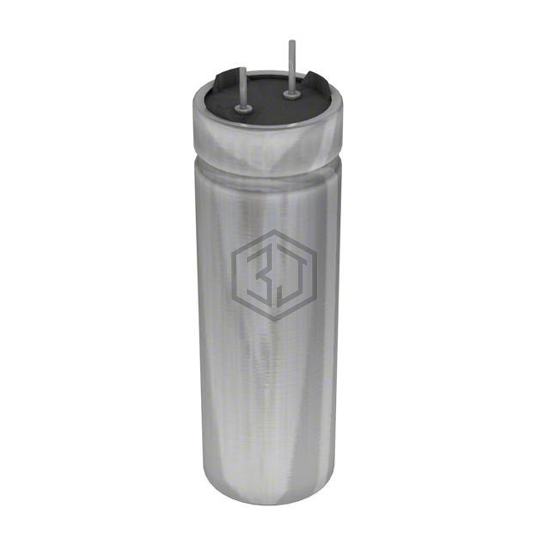

CAP ALUM 1100UF 75V RADIAL
VPR112U075N3C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 1100UF 75V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 75 V, package / case Radial, Can.
In Stock: 1,160
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1100 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 75 V |
| ESR (Equivalent Series Resistance) | 44mOhm @ 10kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.577 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.402" (10.20mm) |
| Size / Dimension | 1.000" Dia (25.40mm) |
| Height - Seated (Max) | 3.126" (79.40mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MLSG112M075JA0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 1100UF 20% 75V FLATPACK | 88% | View |
| MLSH112M060JK0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 1100UF 20% 60V RADIAL | 86% | View |
| THAS112M075AC0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 1100UF 20% 75V FLATPACK | 82% | View |
| THAS112M075AC1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 1100UF 20% 75V FLATPACK | 82% | View |
| MLS112M075EK1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 1100UF 20% 75V FLATPACK | 64% | View |
| HVMLS112M075EK0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 1100UF 20% 75V FLATPACK | 64% | View |
