Cornell Dubilier Electronics (CDE)

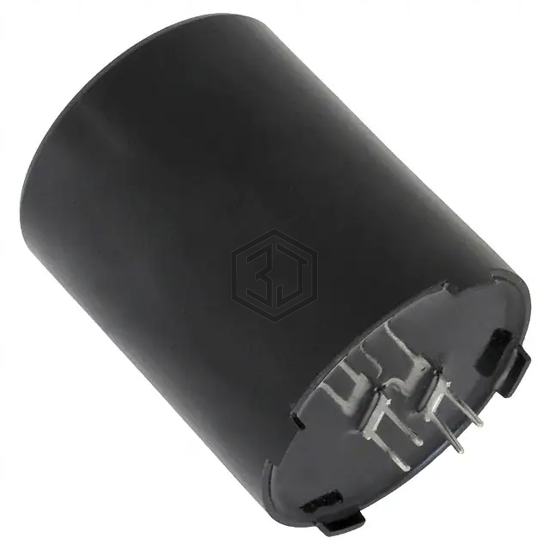

CAP FILM 40UF 10% 800VDC RADIAL
UNL8W40K-F is a Film Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP FILM 40UF 10% 800VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating - dc 800V, package / case Radial.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 40 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 800V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 7.5 mOhms |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 2.500" (63.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.500" (12.70mm) |
| Applications | DC Link, DC Filtering |
| Ratings | - |
| Features | Low ESR |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP1848C64090JY2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 40UF 5% 900VDC RADIAL | 98% | View |
| EFDKA90J406F034DH | Eaton - Electronics Division | CAP EFDKA 900VDC 40UF J 4LEADS | 98% | View |
| BLS406K901N514 | Cornell Dubilier Knowles | 40UF 900VDC 42X60X45MM LS=37.5 | 98% | View |
| MKP1848C64010JY5 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 40UF 5% 1KVDC RADIAL | 96% | View |
| MKP1848C64060JP4 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 40UF 5% 600VDC RADIAL | 95% | View |
| F339MX264031MYI4T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 40UF 20% 450VDC RADIAL | 90% | View |
Submit your RFQ for UNL8W40K-F and get a quote within 24 hours.
